Description
|
Type
|

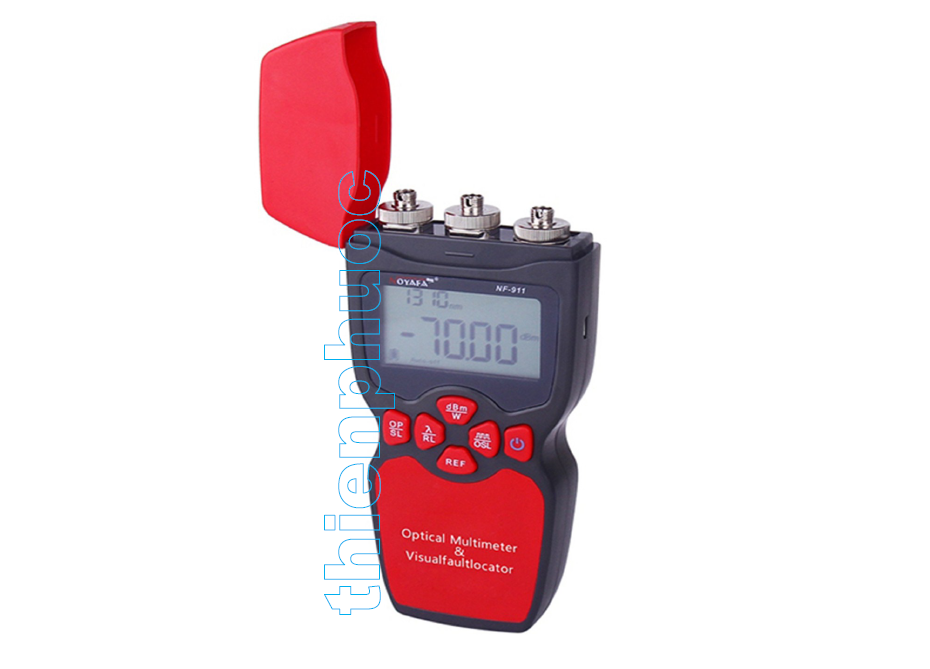

NF-911A
|
NF-911C
|
|
Optical Power Meter Module
|
||
|
Detector Type
|
IngaAs
|
|
|
Measurement Range(dBm)
|
-70~+10
|
-50~+26
|
|
Uncertainty
|
3%
|
|
|
Calibrated wavelengths(nm)
|
850, 1300, 1310, 1490, 1550, 1625nm
|
|
|
Resolution (dB)
|
0.01dBm
|
|
|
Identification Frequency Range
|
10Hz~60KHz
|
|
|
Optical Connector
|
FC (SC,ST,LC connector can be optional)
|
|
|
Optical Light Source Module
|
||
|
Emitter Type
|
FP-LD
|
|
|
Wavelengths
|
1310/1550(other wavelengths can be optional)
|
|
|
Ouput Power(dBm)
|
-7dBm
|
|
|
Output Stability
|
±0.05dB/15mins; ±0.1dB/ 8hours
|
|
|
Modulation Frequencies
|
270Hz, 1KHz, 2KHz
|
|
|
Optical Connector
|
FC (SC,ST,LC connector can be optional)
|
|
|
Visual fault locator
|
||
|
Emmiting Energy
|
5mw/ 10mw/ 20mw/ 30mw selectable
|
|
|
Standard wavelenth
|
650±10nm
|
|
|
Operation Mode
|
Pulsed (2Hz) and CW
|
|
|
Connector
|
2.5mm or 1.25mm Universal connector
|
|
|
General Specifications of Multi Meter
|
||
|
Power Supply
|
1.5V*3pcs
|
|
|
Auto-off time
|
15mins
|
|
|
Operating Temperature(°C)
|
-10~+60
|
|
|
Storage Temperature(°C)
|
-25~+70
|
|
|
Dimension(mm)
|
160x75x32mm
|
|
|
Weight (g)
|
210
|
|
